WebCenter 11g PS3 Tutorial: Building a WebCenter Template

In the past sections we have worked with the default template provided by JDeveloper. Let's be honest, that template is not really fancy so we'll create one that is much better.

Prerequisites

I also have to be honest, my CSS and templating skills are not as good as my WebCenter skills. I bet they are even worse than yours. So for this part I asked for help to some CSS guys who also know WebCenter. John Sim came to the rescue and he provided me with a basic HTML template that I could easily translate into a WebCenter Portal template.

The template contains a lot of CSS which is very well written by John, some images and an HTML file.
For this part of the tutorial, you will need to download ViePortal_v3start.rar. This file contains the starting point for our tutorial.

In the pagetemplates folder of the project, you will also find a file called johnTemplate.jspx. This is the actual template that we will be creating in this part. I have added this as a reference so in case you have made an error, you can easily copy/paste the code from that file.

Enough chattering, now let's get started.

Creating a new template

A template in WebCenter (or an ADF application) is nothing more than a JSPX page with additional tags to define some regions. This means that you can use all the existing ADF or WebCenter components in your template.

Before we begin we must create the template JSPX file. In WebCenter, all templates should be added to the pagetemplates folder. If you don't do this, your template can not be used during runtime.

Right click on the pagetemplates folder and select New from the context menu.

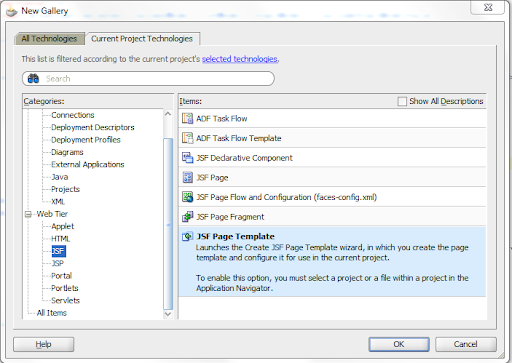

In the left menu select JSF in the Web Tier section and select JSF Page Template from the right hand side:

Press OK.

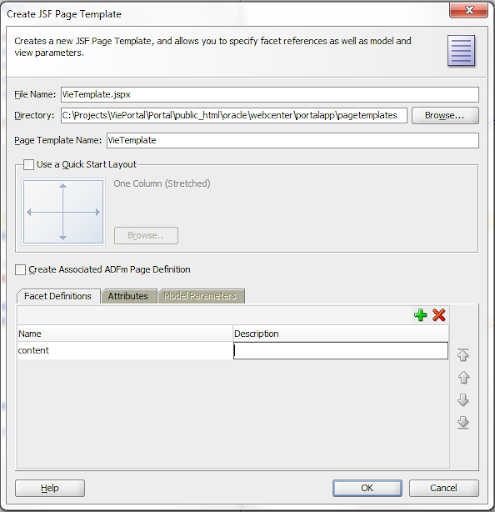

Specify a name for the template like VieTemplate.jspx

Make sure the directory is set to the pagetemplates directory.
Specify a name for the template for example VieTemplate

Every template contains facets. A facet can be seen as a region in a template. It defines a section of the template that can be uses by other pages. You will create facets for each region that can be modified by the pages using this template. In our case, we don't allow the other pages to modify the header, footer and so on. We only allow them a section to insert their own content.

In WebCenter, a template should always have a facet called content. This facet will be used by the composer to make the page editable during runtime. Without the content facet, the composer can't do anything on the page so must add it.

Press the add button in the facet definitions and specify content as the name of the facet. A description is not mandatory so we can leave it empty.

The template definition should look something like this:

Press OK to create the template.

You now have an empty template. As a starting point, you can copy/paste the code from johnTemplate.jspx to this template. Copy line 1 thru 88 and use this as a replacement of line 1 thru 7 of the VieTemplate.jspx.

I will explain the code into more detail now. we will also add additional features later on in this tutorial.

Deep dive into the template code

First of all, I will not explain any basic HTML or how the CSS works. It's a WebCenter tutorial so I will only explain the WebCenter related stuff. If you however have questions about the CSS or HTML, you can always leave a comment and i will try to answer it or I'll ask John to pass by and share his knowledge.

Line 20: on this line we create a link to the administration section. In a WebCenter Portal, you can easily access the administration section by /admin. No difficult URL is required here. The rendered attribute is used to only display the administration link if the user has sufficient rights.

  1. <li>
  2.   <af:goLink destination="/admin"
  3.     id="lAdmin" styleClass="ico_preferences"
  4.     text="Administration"
  5.     rendered="#{securityContext.authenticated}"/>
  6. </li>

Line 21: If the user is logged in, we display the username.

  1. <li>
  2.   <a class="ico_favourites" href="">
  3.      <span>
  4.         <af:outputText id="oUser"
  5.          value="#{securityContext.userName}"/>
  6.       </span>
  7.     </a>
  8. </li>

Line 22: A logout link will be provided later on in this tutorial so for now the href is empty.

Using the navigation model in the template

In the previous section I have explained how you can build a navigation model for the users. In this part, we will use that navigation model to create menu for our users.

As you know, a navigation model can have different levels. Each node can have child nodes and each child node can also have child nodes and so on. In our template we need to be aware of this. We need to specify code for each level so it is important to know how many levels we want to show in our navigation.

In this template we only want to show 2 levels in our menu so we only need to provide code for those levels. If you have nodes on a 3th level than these nodes will not be displayed in our menu. This is a choice that you need to make as a designer of the template or one that has to be made by the business.

The first level of our navigation is generated on lines 33 thru 40.

  1. <ul class="linksList">
  2.   <c:forEach var="node"
  3.     varStatus="vs"
  4.     items="#{navigationContext.currentModel.listModel['startNode=/, includeStartNode=false']}">
  5.      <c:if test="${node.selected}">
  6.          <c:set value="${node.children}"
  7.            var="childNodes"
  8.             scope="session"/>
  9.      </c:if>
  10.      <li><af:goLink id="gLink"
  11.                destination="#{node.goLinkPrettyUrl}">
  12.                 <span>
  13.                  <b class="">
  14.                   <af:outputText value="#{node.title}"/>
  15.                  </b>
  16.                </span>
  17.              </af:goLink>
  18.      </li>
  19.   </c:forEach>
  20. </ul>

In the forEach loop, we loop thru the first level of the current navigation model. The navigationContext contains all the objects that are linked to the navigation. By using the EL statement #{navigationContext.currentModel} you reference the current navigation model. You can also reference the default model: #{navigationContext.defaultNavigationModel}. The difference between those 2 is that you can have pages that uses a different model. When you use the defaultNavigationModel, you always use the model that is configured as the default one. By using the currentModel, you use the one that is bound to the current page. In our case, the default and the current model are the same but it is important to know that these can be different!

In line 36 thru 38 we test if the current node is the selected one. If so, we set a variable containing its child nodes. We will be using this variable later on in the template to display the second level of our navigation. ${node.selected} contains a boolean that tells you whether or not the current node is selected. Selected means that the URL specified by the node is the same as the URL you are currently visiting.

On line 39 we are rendering the actual link to the node. As the destination we use the node.goLinkPrettyUrl which will return a clean URL pointing to the node. As the text of the link we use node.title which contains the content of the title attribute that you specify in the navigation model.

That's about it for the first level. For rendering the second level of the navigation, we don't really use anything new.
On line 49 thru 51 we check whether or not the childNodes variables has been set. Remember that we set this variable on line 37 but only if the node of the first level is selected. Suppose that we are on a page from the second level, than the childNodes variable will be empty. This is where line 50 comes into play. Because childNodes is empty, we are sure that the current selected node is a node from the second level and therefore the childNodes will be the nodes from the parent of the current selected node.

After that we have set the childNode, we use the same technique as with the first level. Just use a forEach loop to loop all the nodes and display them.

Adding the template as a portal resource

Now that we have finished our template, we should make it available to our portal so we can select it during runtime. This is done by right clicking on the VieTemplate.jspx file and select Create Portal Resource. In the popup specify a template name like Vie Template and press ok.

Right click on the Portal projct and Run it.

Once the portal has been launched, you will notice that the default template is still the basic one from JDeveloper. We will change this in the administration section. Login with an administrator and go to the administration section.

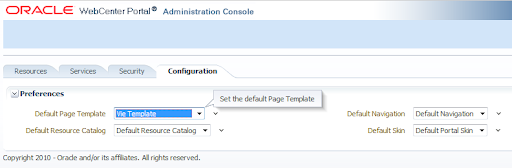

Open the Configuration tab and select Vie Template as the default page template.

There is no save or apply button because every time you change a value, it is automatically saved so just click on the Back to Portal link.

NullPointerException? Is this correct? Yes it is. The reason why you get a NPE at this point is because the portal expects that the template has a pageDefinition but because we haven't used the binding layer in our template, no pageDefinition has been created yet. This is why we get a NPE at this point.

Return to JDeveloper and right click somewhere in the code of the template. Select Go To Page Definition. A popup will ask you to create the page definition because it currently does not have one. Just press Yes. That's it.

Rerun the Portal project .

As you can remember from the first part of the tutorial, when you run the project in JDeveloper, all the runtime customizations are removed when you rerun the project. This means that we have to select the default page template again...
Yes I know, I should have said that you need to create the pageDefinition before setting the template the first time but this way you have seen the error and the next time you see it, i bet you know what is wrong.

So once you have set the default page template back to Vie Portal, the home page should look something like this:

How cool is this! Now click on the My Courses page and you should see the child pages appear in the blue banner.

Setting the default template

You've seen how to set the default template using the configuration tab at runtime. You can do the exact same from within JDeveloper. This way, it doesn't mind that we lose the runtime customizations. All the setting you manage in the configuration tab can also be set in the adf-config.xml file located in the descriptors/ADF META-INF folder in the Application Resourcesb.

Open this file in JDeveloper and open the source. Look for following entry:

  1. <portal:preference
  2.      id="oracle.webcenter.portalapp.pagetemplate.pageTemplate"
  3.      desc="Default Page Template"
  4.      value="/oracle/webcenter/portalapp/pagetemplates/pageTemplate_globe.jspx"
  5.      resourceType="Template" display="true"/>

The value attribute contains the default value so change this and replace pageTemplate_globe.jspx by VieTemplate.jspx:
  1. <portal:preference
  2.           id="oracle.webcenter.portalapp.pagetemplate.pageTemplate"
  3.           desc="Default Page Template"
  4.           value="/oracle/webcenter/portalapp/pagetemplates/VieTemplate.jspx"
  5.           resourceType="Template" display="true"/>

Rerun the portal and you should see that the template is already set. We don't need to go to the administration section anymore.

You'll also notice that we don't have a login form or link so we can't actually login to our portal.
Let's add the login functionality now.

Adding a login popup to the template

In the template provided by JDeveloper, you have a username and password input field on the page itself. In our template we want a popup instead that will be opened when the user clicks on the login link.

Add the code listed below after line 21.

  1. <li>
  2.    <af:commandLink styleClass="ico_logOut"
  3.       id="cmdLogin"
  4.       rendered="#{!securityContext.authenticated}"
  5.       text="Login" partialSubmit="true">
  6.         <af:showPopupBehavior
  7.            triggerType="click"
  8.            popupId="popLogin"/>
  9.    </af:commandLink>
  10.    <af:popup id="popLogin"
  11.        contentDelivery="lazyUncached">
  12.       <af:panelWindow id="dlgLogin" title="Login">
  13.           <af:subform id="fLogin" defaultCommand="bLogin">
  14.              <af:panelFormLayout id="pLogin">
  15.                  <af:inputText id="txtUser"
  16.                   value="#{o_w_s_l_LoginBackingBean.userName}"
  17.                   label="Username" required="true"/>
  18.                  <af:inputText id="txtPass"
  19.                   value="#{o_w_s_l_LoginBackingBean.password}"
  20.                   label="Password" secret="true"/>
  21.                    <f:facet name="footer">
  22.                      <af:commandButton text="Login" id="bLogin"
  23.                        action="#{o_w_s_l_LoginBackingBean.doLogin}"/>
  24.                    </f:facet>
  25.               </af:panelFormLayout>
  26.           </af:subform>
  27.       </af:panelWindow>
  28. </af:popup>
  29. </li>

Also replace the line that outputs the logout link with following code:

  1. <li>
  2. <af:commandLink id="bLogout"
  3.  rendered="#{securityContext.authenticated}"
  4.  action="#{o_w_s_l_LoginBackingBean.doLogout}"
  5.  styleClass="ico_logOut" text="Logout"/>
  6. </li>

Let's explain this code .

First of all, we'll add a commandLink that will only be rendered when we are not authenticated. This commandLink has a showPopupBehavior so it can open the login popup. We define the popup just below the commandLink.

In the popup we use a subform so it will not interfere with other elements in our page. The form has two inputText elements. One for the username and one for the password. The value is bound to a managed bean defined by the WebCenter framework. We use the same bean to logout. The bean is provided by the framework so we don't need to register or create it. The action on the commandButton in the footer of the form is bound to the doLogin action of that managed bean. This way, the actual login logic is handled by the framework ad we don't need to write any code for it.

The same can be done for the logout button. We just bind the action of our logout button to the doLogout action of the managed bean. This way it is handled by the framework. We also only render the logout link if we are logged in to the portal.

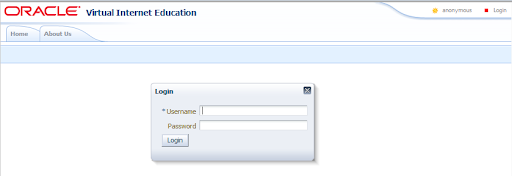

Now run the application and test the login popup.

Once you are logged in, you should see all the tabs and the administration link:

Also don't forget to test the logout link!

That's it. We have finished the template!

Configuring pages to use the default template

There is one more topic I would like to cover in this tutorial and I'll show why.
Run the Portal project , login and open the Registration page. You'll notice that it does not use the VieTemplate we created in this tutorial. Even if this template is set as the default one so how can this be?

The answer for this is quite easy. We explicitly told the Registration page to use that template. We didn't configured the page to use the default template. That's why it shows up with the other template.

In order to change this, we need to make some modification in the registration.jspx and in the pageDefinition of that file.

First of all, open the registration.jspx page in JDeveloper.
Modify

  1. <af:pageTemplate
  2.      viewId="/oracle/webcenter/portalapp/pagetemplates/pageTemplate_globe.jspx"
  3.      value="#{bindings.pageTemplateBinding}" id="pt1">

into
  1. <af:pageTemplate
  2.     value="#{bindings.pageTemplateBinding.templateModel}"
  3.     id="pt1">

As you can see, we have removed the viewId so we don't refer to an actual template anymore. The value attribute is bound to the bindings of the page. In order for this to work, we need to modify the bindings as well. In the bindings click on the link on the top of the page to open the actual pageDefinition file and go to its source.

Modify following line:

  1. <page path="oracle.webcenter.portalapp.pagetemplates.pageTemplate_globePageDef"
  2.          id="pageTemplateBinding" Refresh="ifNeeded"/>

And use this:
  1. <page viewId="${preferenceBean.defaultPageTemplate}"
  2.          id="pageTemplateBinding" Refresh="ifNeeded"/>

As you can see, we have removed the path attrubute and added the viewId which points to the preferenceBean.defaultPageTemplate. This way, the template we select in the configuration or in the adf-config.xml will be used.

Save all and rerun the portal again. Go to the registration page. Now it should use the default template. If you want to test if, just change the default template in the configuration section of the administration page back to the Globe PageTemplate. All the pages should now use that template instead of the VieTemplate.

You can download the application as it should be by the end of this part below.

In case something is not clear or you still have question, don't hesitate and leave a comment.
You can also take a look at chapter 5 of my WebCenter 11g PS3 Administration Cookbook. I also give an explenation on how to create templates and give some additional examples and information in the book.
